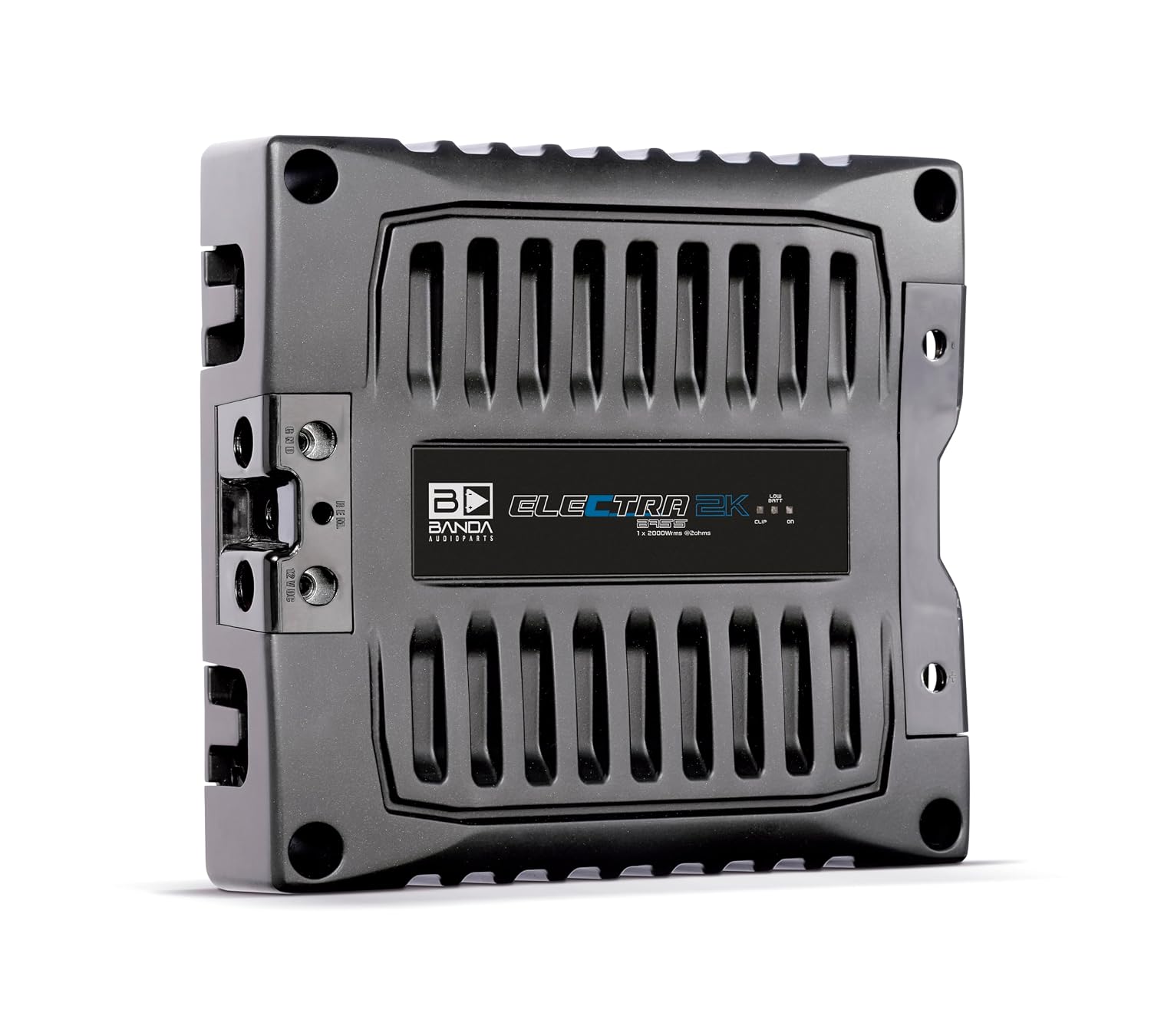

Banda 1-Channel Vehicle Audio Bass Amplifier - High-Powered Mono Bass Amplifier w/Subsonic Filter and Low Pass Filter Stable at 2 ohm, LED Indicators, Sound Specialization - 2K2
Product details
| Management number | 222564210 | Release Date | 2026/05/04 | List Price | US$70.00 | Model Number | 222564210 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
BANDA 2K2 One Channel 2000 Watts Max @ 2 Ohms Car Audio Amplifier w/Bass Boost High Pass Filter and Low Pass Filter. Use 21mm / 4 AWG power cables for both GND and +12Vdc. Do not use an impedance load lower than the amplifier specification. This can damage the equipment. Use wire solder for tinning the cable end for better electrical contact. Loose electrical connection can cause malfunction, heating and even fire. The GND connection must be as short as possible, using an adequate wire terminal firmly connected to a clean, paint free spot at the car chassis. If more than one amplifier is used, provide adequate individual wiring for each one. If using a power supply to power the amplifier, it must be capable of supplying 2 x 0 AWG power cables for both GND and +12Vdc with at least the amplifier maximum current value and maximum output variation (Vripple) of 10%.
- POWER SUPPLY: Class D vehicle amplifier, Max Power 14.4v @ 2 Ohms: 2700 WRMS, Max Power 14.4v @ 4 Ohms: 1800 WRMS, Max Power 12.6v @ 2 Ohms: 2000 WRMS, Max Power 12.6v @ 4 Ohms: 1400 WRMS, Efficiency @ 4 Ohms: 85%, Efficiency @ 2 Ohms: 75%
- MONO BASS AMPLIFIER INDICATORS: Blue LED: source and powered amplifier indicator, Red LED: output distortion (clipping), Constant - output short circuit indicator, Yellow LED: low voltage battery, Constant - Fuse blown or missing
- POWER OUTPUT AND IMPEDANCE: Input Voltage: 9 to 15V, Input Impedance: 100K Ohms, THD + Noise: less than 1%, Input Sensitivity: 230mV – 4V, Signal to Noise Ratio: 86dB
- SOUND SPECIALIZATION: This high-powered Power Amplifier is cutting edge technology at its finest. RCA connectors ensure a secure connection between amplifier and speakers that allow distortion-free sound
- OTHER TECHNICAL SPECS: Recommended Fuse: 100A, Current at Rest: 2A, Max Current (Sinusoidal): 235A, Max Current (Musical): 115 A, PWR cables (min. Recommended): 21mm / 4 AWG, Output Cables (min. Recommended): 2x4mm/2x11AWG, Size: 2.1’’ x 8.2’’ x 9.5’’
| Model | 2K2OHM |
|---|---|
| Voltage | 12.6 Volts |
| Brand Name | Banda Audioparts |
| Unit Count | 1.0 Count |
| Item Weight | 7.2 Pounds |
| Part Number | 2839 |
| Manufacturer | BANDA |
| Output Power | 2700 Watts |
| Material Type | Aluminum |
| Mounting Type | Surface Mount |
| Item Type Name | 2K2 |
| Item Dimensions | 9.84 x 9.45 x 2.36 inches |
| Package Type Name | box |
| Specification Met | Audio Equipment Standards |
| Number of Channels | 1 |
| Maximum Supply Voltage | 15 Volts |
| Minimum Supply Voltage | 9 Volts |
